A longhouse built for acreage
The Bangaree is a longhouse-style shed home with an open floor plan and high ceilings throughout. The layout puts the master bedroom at the far end of the house for privacy, with living areas flowing through the centre. The rear section is left flexible, use it for horse stables, a workshop, a home gym, or a double garage. The Bangaree is one of our most popular designs for owner-builders on acreage.
Everything you see here is what we manufacture ourselves. You build it as owner-builder, which is where the saving comes from, and we support you through approvals, engineering and certification.
Key details
| Bedrooms | 4 |
|---|---|
| Bathrooms | 2.5 |
| Length | 37.2m |
| Width | 9m |
| Living Area | 216 sqm |
| Breezeway | 54 sqm |
| Stables / Workshop | 64.5 sqm |
| Total Floor Area | 334.5 sqm |
The shed end is the part most people miss
The garage and stables area is engineered to the same Class 1a standard as the rest of the house, not to shed standard. That is deliberate. It means the space is not locked into being storage.
Set up as a double garage and workshop it is exactly that. But the structure will just as happily take a two bedroom self contained space for family, guests, a home office or a business, without re-engineering the building or bolting anything on later.
The roller doors are not fixed either. They can go in the gable end as shown, moved to the side wall, or run as two doors on the gable, whatever suits the way you come and go from the block.
What you can actually do with it depends on your block and your council, and that is a conversation worth having early. The point is the building is already built for it.
Walk through it
The Bangaree, inside and out
Renders of the standard Bangaree. Colours, cladding and finishes are all yours to choose.
Budget guide
| Package | From |
|---|---|
| Base Kit | $130,900 |
| Kit Supply | $150,000 |
| Kit + Lockup | $300,000 |
| Owner-Builder | $450,000 |
| Builder Complete | $600,000 |
| Traditional build | $835,000 |
We supply the kit. The build is yours or your builder’s, and those figures are a guide only.
Our owner-builders save around 36.5% against a traditional turnkey build. On the Bangaree that is about $305,000.
*Base kit price, includes structural steel frame and single-glazed windows. Kit Supply includes the pre-engineered steel frame, internal steel wall frames, windows, architectural drawings and stamped engineering plans. Traditional build based on the Australian industry average of $2,500 per sqm for a comparable turnkey home. Budget guide only, final pricing is site-specific.
Inclusions
- Structural steel framing
- Uni-Flush™ inline purlin system
- 0.47mm steel roof sheeting
- 0.47mm steel wall sheeting
- Standard single-glazed windows
- 8mm Reflex Foamcell base insulation
- Architectural, construction, DA and building approval drawings
- Engineered drawings and certification
- Engineered slab design (customer-supplied soil test)
- 7-Star NatHERS energy certification
Upgrades & extras
- Additional bulk insulation as per NatHERS certification
- Double-glazed windows and Low-E glass
- Standing seam cladding profile
- Vaulted ceilings
- Colorbond® Matt, Ultra or Unicote® Lux finishes
- Carports and awnings
- Additional bays to the building
- Separate sheds or garages
- Wainscot brick, stone or tile to lower wall
- Floor plan customisations
- BAL rating upgrades, BAL 12.5 to BAL 40 (BAL FZ also available)
- Full custom designs, by application
Floor plans and drawings

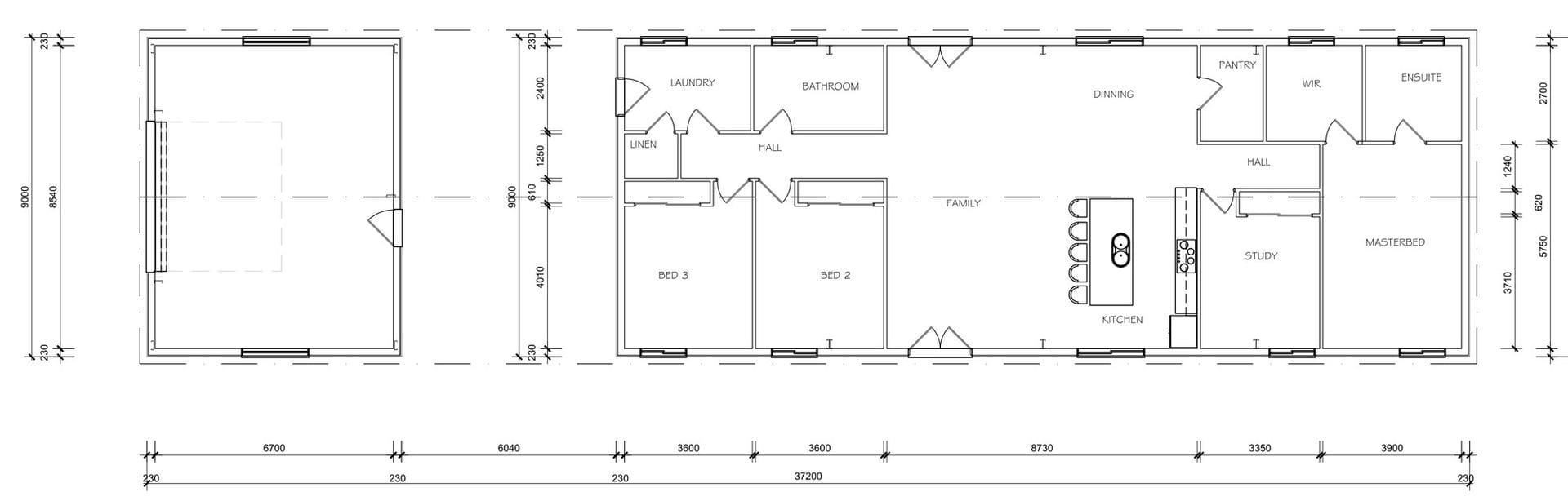

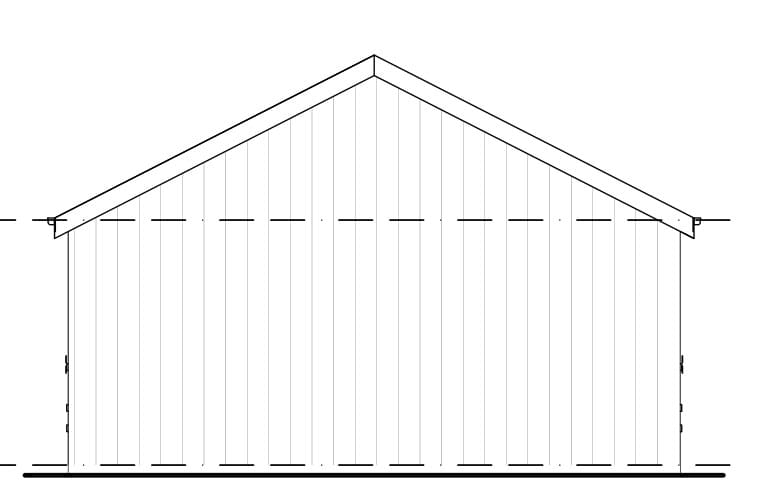

Drawings for the standard Bangaree, at 1:100. Dimensions are in millimetres.
Interactive plan – walk through the house
Open the plan and click any red camera icon to play a video walkthrough of that part of the Bangaree. 4 rooms, filmed inside the home.
See the Bangaree on your own block
Type your address into our mapping tool, place the Bangaree on your property, and move it around until it sits where you want it. It gives you the distances to your boundaries as you go. When it looks right, send it through and we will price it.
